Cable Tray Forming Machine

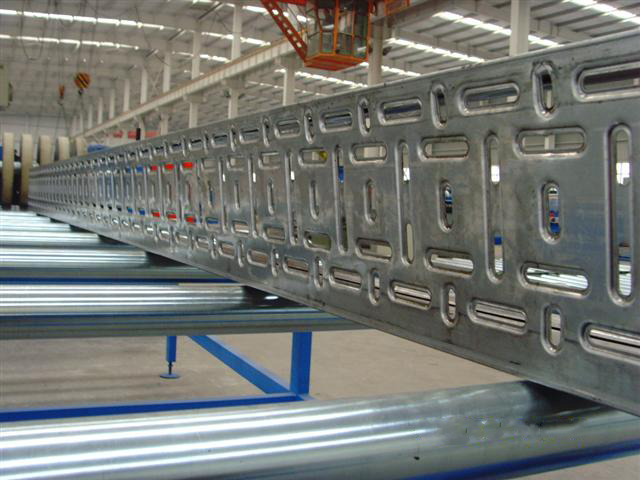

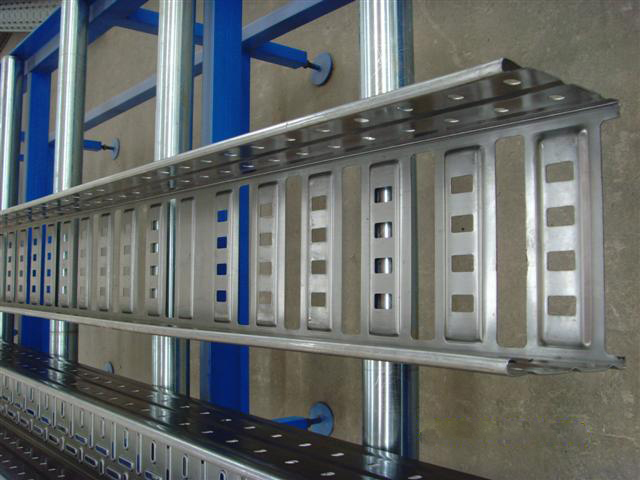

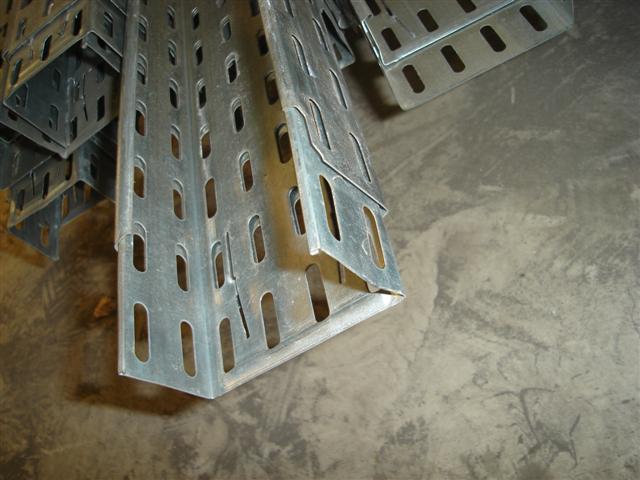

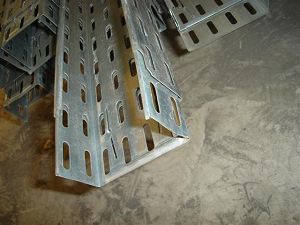

Cable trays are used as an alternative to open wiring or electrical conduit systems which are commonly used for cable management in commercial & industrial construction. We are cable tray roll forming machine manufacture, we produce various of products such as type cable tray, mesh cable tray and ladder cable tray as your requirements. They are especially useful in situations where changes to a wiring system are anticipated.

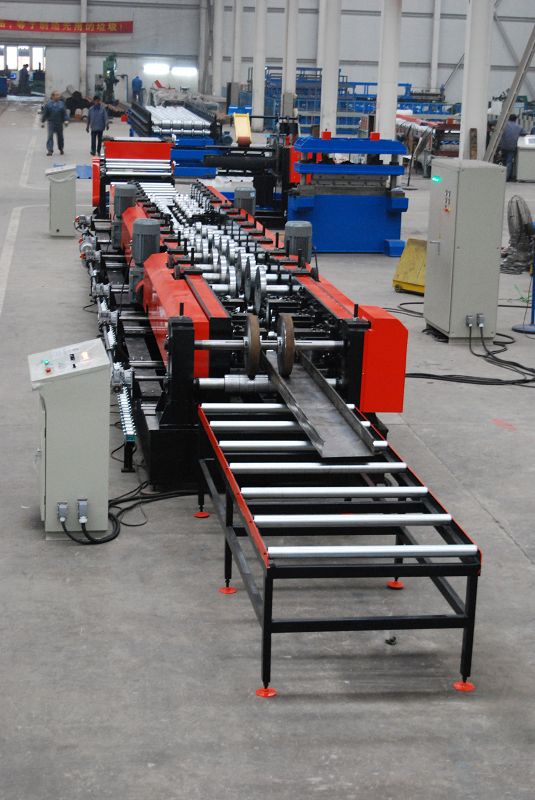

Cable Tray Forming Machine line

Our cable tray forming machine makes the cable tray system is used to support insulated electric cables used for power distribution and communication in the electrical wiring of buildings. The raw materials for cable tray are made of galvanized steel, stainless steel, aluminum, or glass-fiber reinforced plastic in generally. The material for a given application is chosen based on the corrosion resistance required for the location.

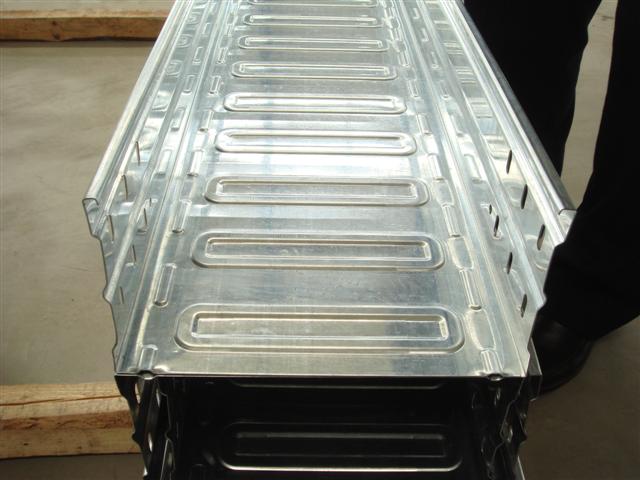

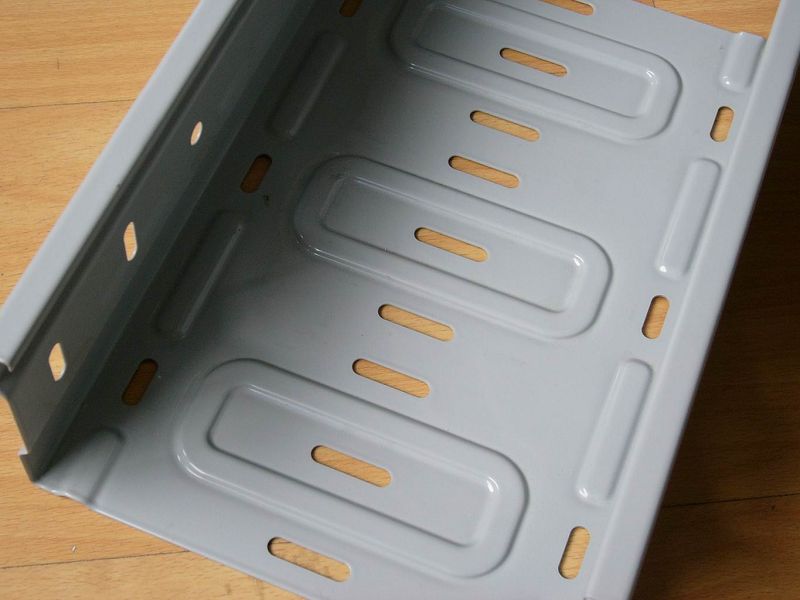

Our cable tray forming machine can make the different shape of the cable trays as customer's requests.

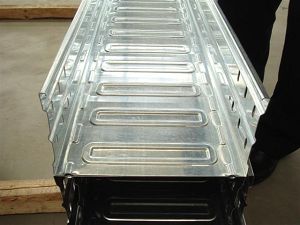

product product 6

product product 22

The cable tray forming machine is driven by double cantilever gears, the width can be adjust continuously, the width can be changed fast.

Function and Structure:
 The sheet after cutting can be transformed according to drawing, 16 steps. It is made up of AC motor, reducer, high-precision rolling linear guide, right and left transmission box, lateral adjusting device and rollers.

 The machine base and transmission boxes adopt welded structure and has stress relieve treatment. The gears adopts 45# steel hard finishing and combination structure and FEA analysis, which can promise the product precision.

The rollers are GCr15 and hardness is HRC 58-62. It is high-precision, high hardness, hard precision and long lifetime.

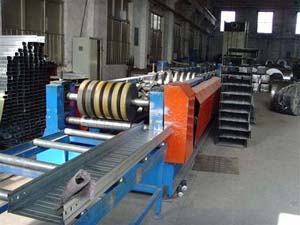

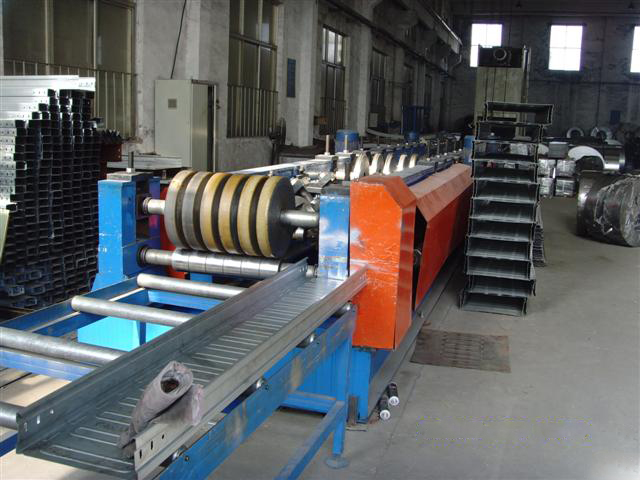

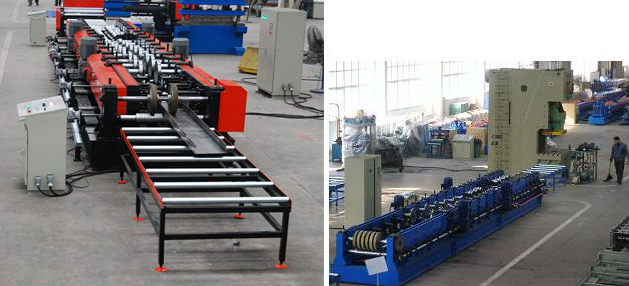

Cable Tray Forming Machine Running plant  Product 23

Product Size 100*50—700*100mm
Level Rollers about 16 steps
Shaft Diameter φ70mm
Motor Power 22KW
Level Roller Distance 350-650mm
Speed 5-10m/min
