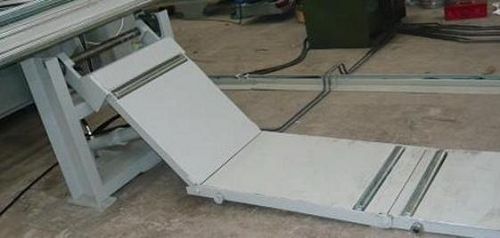

Steel Plate Supporting Table

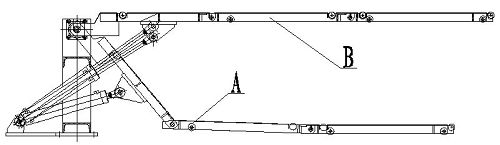

Installed in front of feeding guide, the bracket could move up and down, or retract forward and backward; the retractile drops after leading and no affect about whole line; oil cylinder stretch out movable panel when feeding, and move the bracket from A to B, the coil plate is feed into guiding machine, then drive the main machine and reset oil cylinder, the bracket returns back to position A;
The steel plate could be lead into feeding guide by single operator.

Function & Structure:
Lead steel plate into feeding guide
