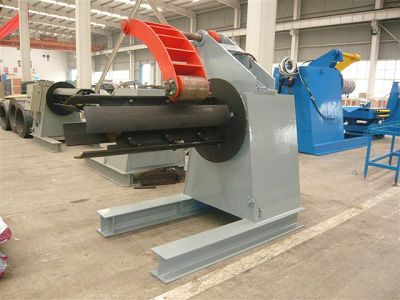

Hydraulic Un-coiler for Roll Forming

Hydraulic system to support and un-coil steel coil; machine body is welded by section steel and steel plate; motor speed reducer drives un-coil, hydraulic pressure expand the connecting rod to be tighten to coil inner wall; equipped with pressure arm, outer barrier to prevent coil loose and accidents, reasonable structure & convenient operation, easily reduces labor intensity. Material location is controlled by opto-electronic device.

Hydraulic Un-coiler Un-coil driver is an independent triple-phase motor
Equipped with mechanism brake apparatus, pressure arm to prevent coil loosen
Un-coil speed can be controlled by frequency conversion
Expanding & tightening through wedging
Material location is controlled by swing-rod
Forward and reverse un-coil discharge
Install independent hydraulic system

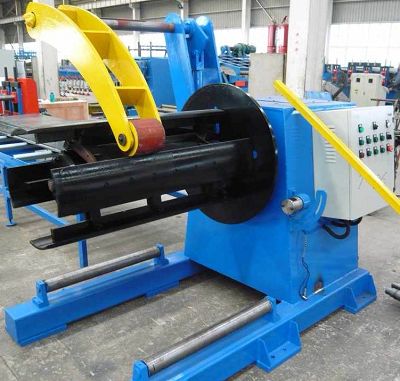

Hydraulic Un-coiler Machine Application Scope & Technical Parameters:
Coil Inner Diameter: φ508mm
Coil Outer Diameter: φ1200mm
Coil Width: 610mm
Load Capacity: 3T,5T,10T

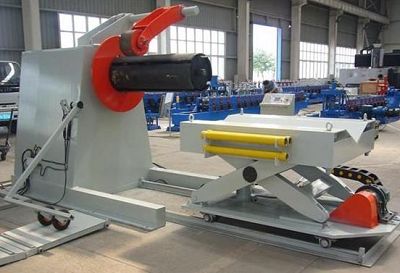

Hydraulic Un-coiler Equipped with A Loading Car

Hydraulic Uncoiler Hydraulic pressure drives lifting, and motor drives motion;
Height travel: 500mm;
Horizontal travel: 1500mm
Max. Load Capacity: 10t
Load Coil Width: 1250±20mm
Scope of Expansion System for coil loading

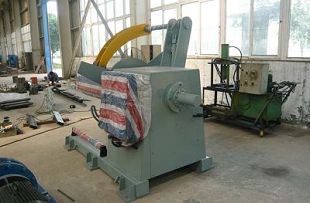

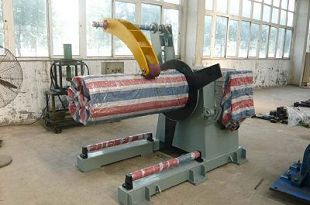

Hydraulic Un-coiler Machine Packing

Hydraulic Uncoiler packing Hydraulic Un-coiler packing
